Grey Mobile Shelving Systems / High Density Filing Cabinet Systems Office

Dongguan Zhijia Storage Equipment Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Grey Mobile Shelving Systems / High Density Filing Cabinet Systems Office

  • 1
  • 2

Model Number : W-MFC2017526

Certification : ISO90001/ISO14001

MOQ : 2-10 SETS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 SETS

Delivery Time : 15-30 Days

Packaging Details : Professional & Saft packaging for oversea shipment

Product Name : File Storage System

Raw material : High Qulity Cold Roll Steel

Structure : Knock down、easy assemble

Lock : Safety lock and 3-point key lock

Layer of each bay : 6 layers or customized

Thickness : 0.8-2.5mm

Solution : available for free

Contact Now

Easy Assemble 3-Point Key Lock Corrosion Protection File Storage System

Description:

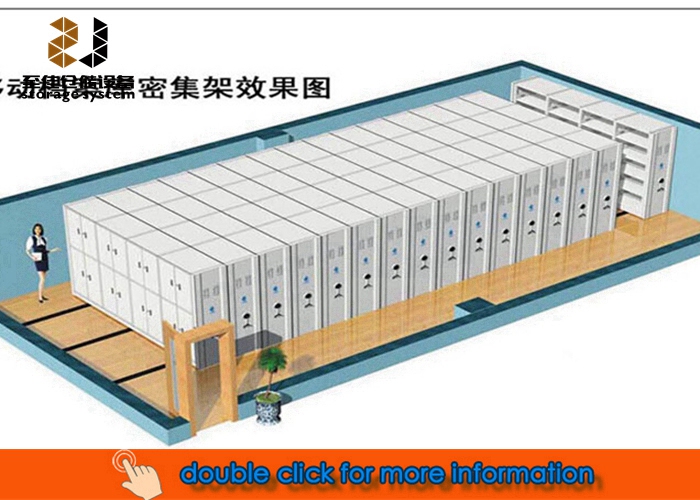

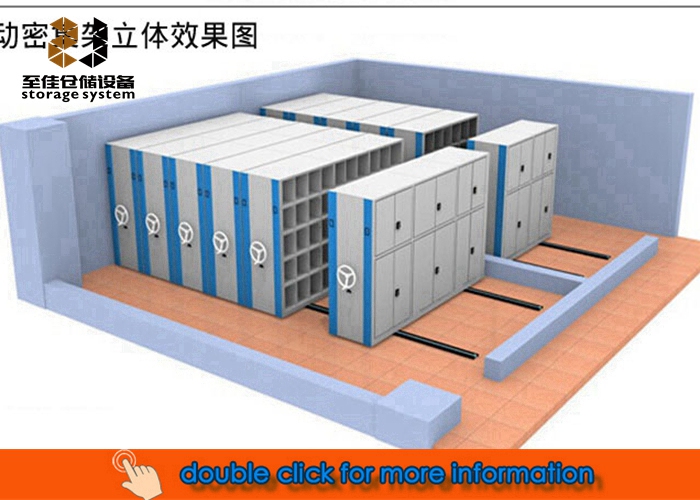

File Storage System Mobile shelving is a kind of intensive storage solution, which goes beyond traditional shelving, it can eliminate most of the aisle space and therefore substantially increase the storage capacity (70% to 100%) with a given place.

Features:

Raw material:High Qulity Cold Roll Steel

Structure:Knock down,easy assemble

Lock:Safety lock and 3-point key lock

Layer of each:bay 6 layers or customized

Thickness:0.8-2.5mm

Surface:Electrostatic Powder Coating

Spare parts:As your requirement

Color:grey

Zhijia Service:

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins

Specification:

Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm GB710
Thickness 3.0
Pathway High quality steel plate 50X185 GB710
Thickness 3.0
Transmission part Handle crank ZG45 Bothway overload clutch GB1285
double axis transmission
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420 Φ8.5, pitch12.7 GB1244
breaking force 1800kg
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1 Gb710
Barb Hot rolled steel plate 3.0mm Gb711

Grey Mobile Shelving Systems / High Density Filing Cabinet Systems OfficeGrey Mobile Shelving Systems / High Density Filing Cabinet Systems OfficeGrey Mobile Shelving Systems / High Density Filing Cabinet Systems Office
