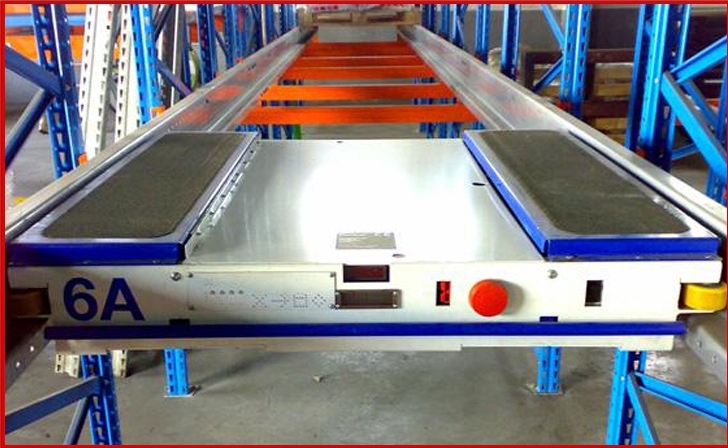

Customized Radio Shuttle System , Warehouse Pallet Shuttle Racking System

Product Categories
Dongguan Zhijia Storage Equipment Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized Radio Shuttle System , Warehouse Pallet Shuttle Racking System

Model Number : W-SS2017526

Certification : ISO9001/14001

MOQ : 10 sets

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 5000 sets per month

Delivery Time : 20-30 working days

Packaging Details : Safe Packaging with Carton for exported shipment

Material : Steel

Type : shuttle racking

Weight Capacity : 500-1500kg

Size : Customer Size

Warranty : 3 years

Usage : Warehouse Storage System

Structure : Assemble

Finish : Electrostantic Powder Coated

Contact Now

Customized Radio Shuttle Pallet Racking for Large Automatic Warehouse Use

Description:

1. pallet rack is designed to store pallet cargo,It enables you to make full use of the storage space. With a wide range of optional solutions and components available, we can design special pallet racking according to your requirements.
2. pallet racking can be coupled with different specifications of pallets and containers.
3. It can coordinate with all the handling equipment and operational equipment.
4. pallet racking is manufactured in accordance with international quality standard ISO9001:2000, as well as international design standard SEMA, FEM, and AS4084,
Each level can be adjustable at 75mm per pitch and the maxmum loading is 25000kg with the maxmum length of 12 meters. Each level loading duty is from 200kgs to 6000kgs, depending on the beam length.
Pallets made of different material with various sizes, can be used on practical stackable pallet racks.

Shuttle Shelves System, structured with pallets and beams are most widely used.
This kind of steel pallet racking is widely used together with forklifts , steel storage containers, steel pallets and storage boxes.

Features and advantages:

Frame
Height (3-15m)
Depth (600-1,200mm)
Upright section: 90 x 70; 100 x 80; 120 x95mm
Thickness: 1.8/2.0/2.3/2.5mm
Beam
Length (1200-3600mm)
Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50;160*50mm
Thickness: 1.5mm to 3.0mm
Load capacity
1-5Tons/Layer
Others
- MOQ. 1 sets
- Pitch: 75 or 76mm
- Delivery time: 7-15days
- Payment term. T/T (30% down payment) or L/C at sight
- Necessary accessories: for free.
- Packing: stretch film & carton
- Production capacity: 3000 sets/month
- Main market: Australia, Europe, Asia, Central America, South America, North Africa and etc.
- Available in various colors/specifications/sizes


Standard Size:

S/N
Standard Size(W*D*H)
Loading Weight
Standard Layer
Material
1
2300*900*3000
1000-4000kg/level
2+1(ground)
steel
2300*900*4000
3+1(ground)
2300*1000*3000
2+1(ground)
2300*1000*4000
3+1(ground)
2
2500*900*3500
2+1(ground)
2500*900*4000
3+1(ground)
2500*1000*3500
2+1(ground)
2500*1000*4000
3+1(ground)
3
2700*900*3500
2+1(ground)
2700*900*4000
3+1(ground)
2700*900*5000
3+1(ground)
2700*900*6000
4+1(ground)
2700*1000*3500
2+1(ground)
2700*1000*4000
3+1(ground)
2700*1000*5000
3+1(ground)
2700-5000*1000*6000-12000
(4,5,6...)+1(ground)
Remark:This size is our standard only. Different size with various loading weight and levels are acceptable.


Product information for inquiry:

1.
drawing(if available)
2.
size of your warehouse and warehouse drawing
3.
size of your goods including pallets(height*width*depth)
4.
weight of your goods including pallets or container
5.
how many levels of the rack
6.
the pallets' entering direction
7.
(RAL)color you want
